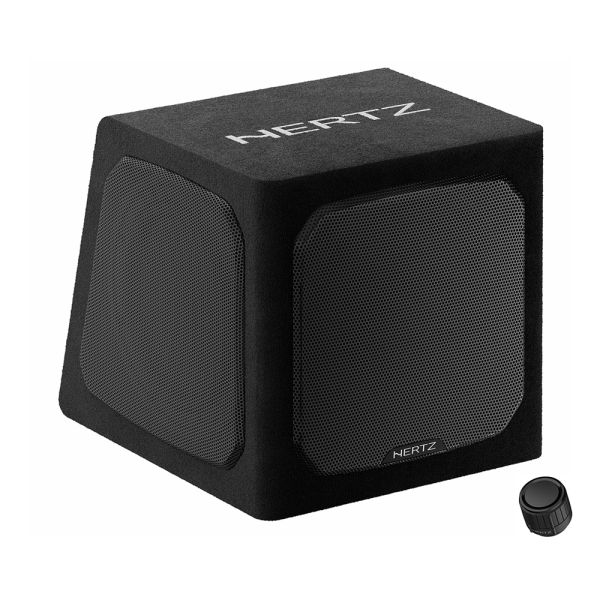

Hertz Dieci DBA 201- 8" Active subwoofer box with double passive radiators
High performance in a compact stylish design
The DBA 201 double passive radiator enclosure made with solid MDF and optimized with FEM simulation ensures superior performance, maximizing the subwoofer output. The massive magnet of the 8-in. driver provides optimal control during the highest cone excursion.
Extra full set of controls to fine-tune the in-car performance
The built-in 24 dB/Oct. low-pass crossover filter with a variable cutting corner frequency (50÷150 Hz) allows you to perfectly match the DBA 201 to your speaker system. Adjustable bass boost (0÷6 dB @ 45Hz) can add bass output as you prefer, allowing correction for OEM sound equalization. With the phase inverter (0-180°), you can optimize phase alignment between the DBA 201 and your speaker system, regardless of the subwoofer’s position in the car. The subsonic filter (15 Hz @ 24 dB/Oct) protects the cone from over-excursion and amplifiers from overheating. The input sensitivity control is the perfect tool to maximize the overall system output level while preventing clipping.
Auto turn-on and standby mode
The built-in audio sense circuit allows the DBA 201 to turn on and timeout to standby mode automatically. You can switch off the audio sense function when a remote turn-on wire is available.
Features:
- Size mm (in.) 200 (8)
- Power Handling - Continuous 220W
- Power Handling - Peak 440 W
- Impedance Ohm 0.4
- Design Active subwoofer box with double passive radiators
- Voice Coil Ø 38.6 (1.52) mm (in.)
- Frequency Response Hz 32 ÷ 400
- Magnet size D x d x h mm (in.) 115 x 47 x 25 (4.5 x 1.8 x 0.98)
- Weight of one component kg (lb.) 6.7 (10.54)
- Magnet High Density Flux Ferrite
- Cone Pressed paper
- Voice Coil Type Copper
