Alpine HDZ-653 Status Hi-Res 6-1/2″ (16.5cm) 3-Way Component Speaker Set
Alpine Introduces the all-new Alpine Status sound system: using the same engineering and design concepts drawn from the third generation, Ultra High-Resolution AlpineF#1Status system, Alpine created “Alpine Status” to achieve High-Resolution Sound at a more approachable and accessible price point. The Alpine Status system is also extremely flexible: all components can be purchased and used in “stand-alone” configuration.

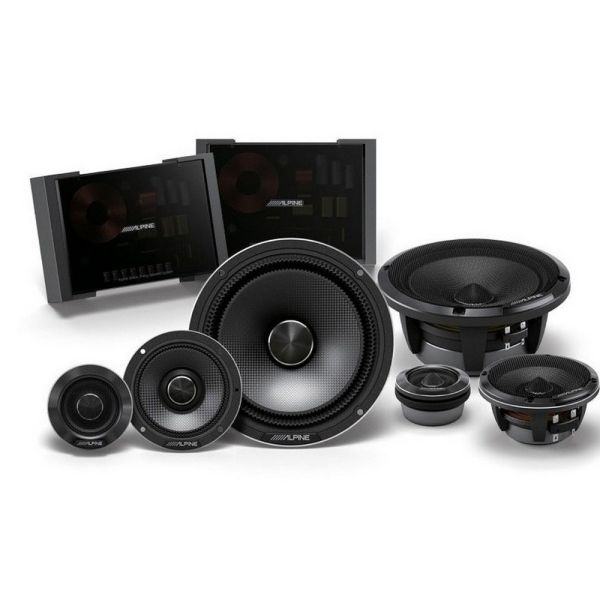

For the audiophile that’s looking to build an ideal sound system, Alpine Status offers a wide range of Hi-Res Audio enabled speakers. The HDZ-653 3-Way speaker set with a high-resolution bandwidth of 55Hz – 40kHz includes a 170mm door woofer, 96mm mid-range, and 70mm ring-radiator tweeter with 25mm voice coil. They also include high-end speaker X-overs.
All speaker cones are made from the same Carbon Composite material to create a unified timbre identity during playback. They get very close to the AlpineF#1Status speakers look and feel, using a very similar constructing and motor assembly, as well as the identical build-materials for highest sound quality.
Features
- Hi-Res Audio certified 3-Way speaker system
- AlpineF#1Status speaker trickle-down technology
- Maximum Peak Power: 300 Watts
- Maximum RMS Power: 100 Watts

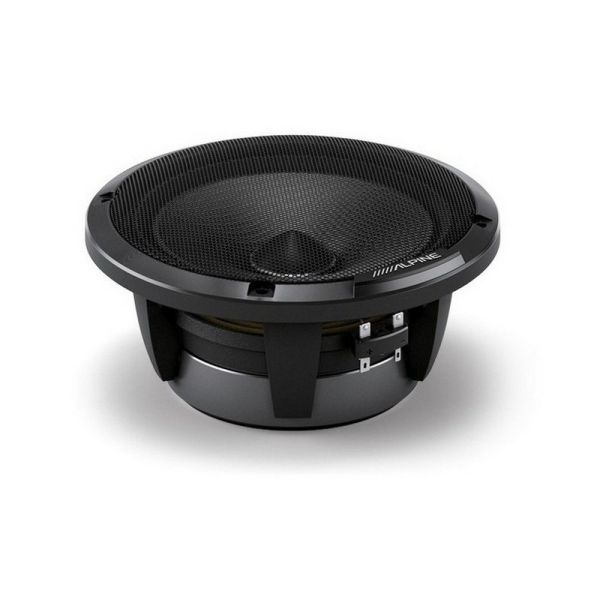

- Woofer diameter: 170mm (177mm with attached grill)
- Mid-range diameter: 96mm

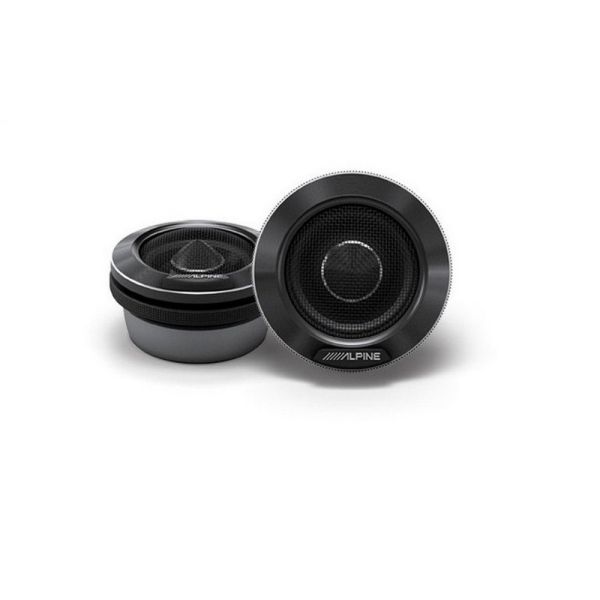

- Tweeter diameter: 70mm (25mm voice coil)
- Aluminum die-cast baskets
- Ring-radiator tweeters
- Backed carbon fiber cones
- Double-gathered edge

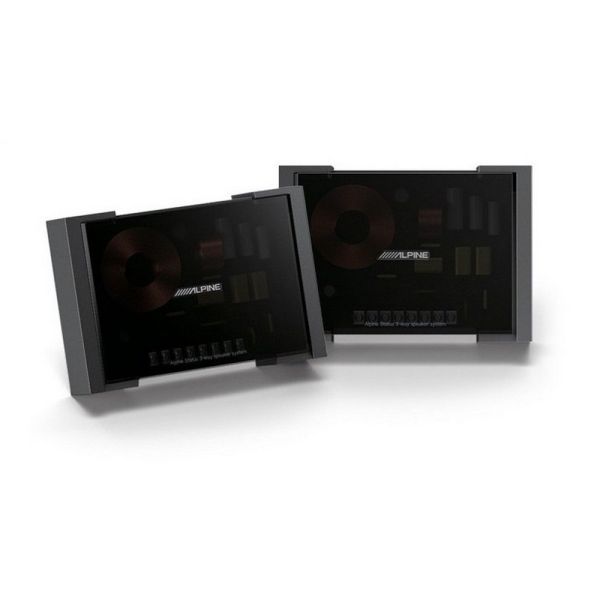

- High-end X-Over networks
- Included speaker grills
- Integrated Wave Guide on all speakers
Specifications:
- Impedance 4Ω
- Sensitivity 88dB SPL (2.83 V @ 1 m)
- Frequency Response: 55Hz – 40kHz
- Mounting depth: woofer 67mm / mid-range 39mm
- Cutout diameter: woofer 142mm / mid-range 79mm
- Recommended amplification: up to 100W RMS per channel
- Ferrite magnet (woofer)
- Neodymium magnet (mid-range speaker and tweeter)
